In the beginning I wanted to build the Power Plant, All the parts were researched and a build list sent to the local VW dealer parts department.  They could get the parts for me at the same cost as CB Performance would offer them at, but would have to pay sales tax.  In the end this ended up being more than shipping and handling would have cost. Calling CB Perf. back and telling them my plans, a deal was worked up that they would take a chuck of change off the price of the parts if I let them put it together, for a fee. The two costs almost canceled each other out.  The plus side to having them build it was the bottom end would be fully balanced and the engine Pre-run with Dyno results.  This I felt was well worth the extra money.  It was built to my specs with the input of Pat at CB Performance. One thing we agreed upon was to have the oil system full flowed.  This was not done, and a filter pump put on in its place.  Other than that it all came together nice. And one Hell of  ride!!!

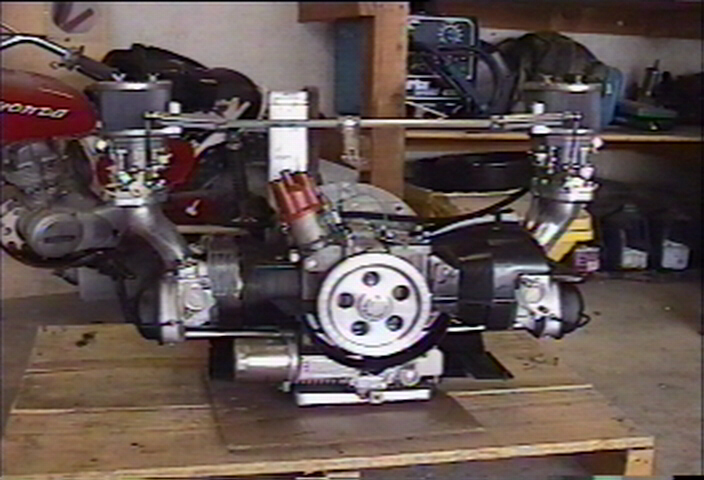

Engine Right out of the box!



After a little clean up

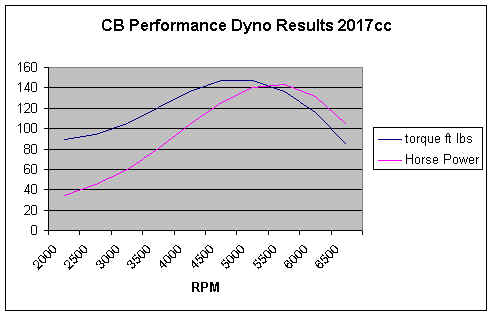

Dyno Results

2017cc
Specs:


Crank
Pistons/Jugs
Rings
Keepers
Rods
Heads
Intake valve
Exhaust Valve
Rockers
Cam
Lifters
Push Rods
Push Rod Tubes
Carbs
Distributor
Ignition
Oil Pump
Oil Filter
Oil Sump
Crank Pulley
Clutch
Flywheel
Spark plugs
Plug Wires
Cromoly 78.5mm counter weighted
Cima/mahle Forged 90.5mm
Total Seal Second Ring
Teflon
Cromloy 5.5 inch race rods
CB 044 Super Magnum Ported&Polished
40mm Stainless steel
35.5mm Stainless steel
1.25:1
.290deg x .390@cam
CB lightweight solid race lifters
Cromoly
Windage
Weber 44mm
Bosch 099
Pertronix
Maxi 3 filter pump
Fram HP1
1.5qt slim line w/ internal filter
Satin Degree with red letters
Kennedy 2100lb
lightened to 12lbs
Bosch W8CC
8mm White HEI
