Front End Work

 I did not have the ability take any pictures while narrowing the front beam.  I am working on a step by step how to narrow a beam right now.  The front beam also sports Sway-A-Way torsion bar adjusters set to lower 3" and raise 1" off stock.  This allows me, with 2 1/2" dropped spindles, the ability to adjust the front end from -1 1/2" to -5 1/2".










Spindles

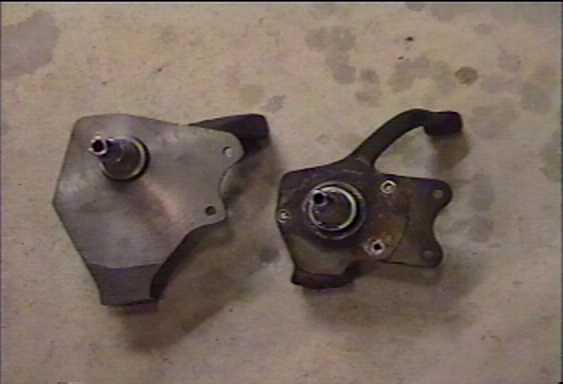

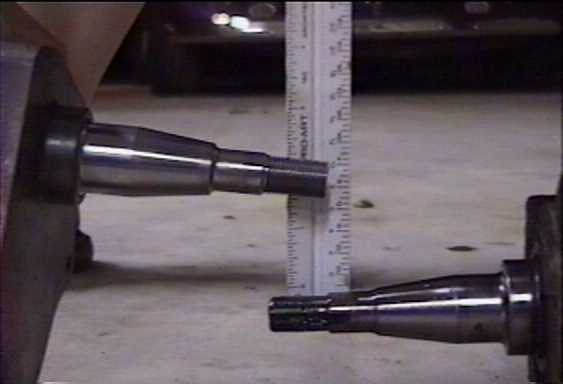

CB Performance Cast spindles were used to lower the car 2.5" lower, and to get a better ride.  One thing these spindles are missing is the three bolt holes to hold on the rear break dust cover.  Other than that they mounted right up without any problems.  They still push the wheel out close to 3/16 of an inch from stock, but not as bad as some of the welded spindles have been seen to do.
